Flanges are integral components used in piping systems to connect pipes, valves, pumps, and other equipment. They provide a method for joining two pieces of pipe together, either by welding, threading, or bolting. Flanges also allow for easy access for inspection, cleaning, or modification of the piping system.

Our Features

  • Compatibility

  • Versatility

  • Flexibility

  • Standardization

Flanges

Flanges are available in a wide range of materials, including carbon steel, stainless steel, alloy steel, brass, bronze, and plastic. The choice of material depends on factors such as the fluid or gas being transported, temperature, pressure, corrosion resistance requirements, and budget considerations. Flanges have bolt holes drilled around the circumference, allowing bolts to pass through and secure the flanges together. The arrangement of bolt holes follows a standard bolt circle diameter, determined by the flange size and pressure rating. Common bolt circle standards include ANSI, ASME, and DIN.

Manufacturing process of Flanges

The manufacturing process of flanges involves several steps to produce these critical components used in piping systems. Here's an overview of the typical manufacturing process:

  • Material Selection
  • Cutting
  • Forming
  • Drilling Holes
  • Heat Treatment
  • Quality Inspection
  • Packaging
  • Shipping

By following these steps, We produce high-quality flanges that meet the stringent requirements of piping systems in various industries.

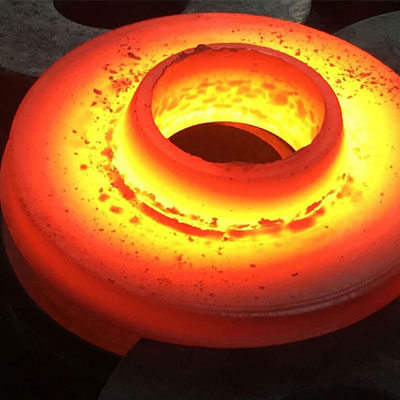

Flanges Manufacturing

Specifications of Flanges

Size: 1/4" NB TO 48" NB (ABOVE AS PER CUSTOMER REQUIREMENT)
Grades F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L
Standard SORF, SOFF, SOLJ, SWFF, WNRF, WNFF, WNRTJ, LWNRF, BLRF, BLFF, BLRTJ, SWRF, LAP Joint, Threaded, Reducing, Spectacle, Orifice & Studding Outlet are manufactured according to ANSI B 16.5, B 16.47 Series A (MSS SP-44), B 16.47 Series B (API 605), MSS SP-43, DIN 2527, DIN 2566, DIN 2576, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2642, BS 10, IS 1538 & IS 6392, JIS Flanges etc.
Types of Flanges Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges, (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Deck Flange, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc.
Flange Dimension Standard ANSI B16.5 (150# to 2500#), ANSI B16.47 (Series A/B, 75# to 900#), EN 1092-1 (PN 6, 10, 16, 25, 40), DIN Standard, UNI Standard, API 6A Standard, BS 10 (Table A, D, E, F, H, J, K, R, S, T), JIS B2220 (5K, 10K, 16K, 20K, 30K), MSS SP-44 Standard, AS 2129 (Table A, D, E, F, H, J, K, R, S, T), IS 6392 Standard.
Form Slip-On Flange (SO), Blind Flange (BL), Lap Joint Flange (LF), Socketweld Flange (SW), Weld Neck Flange (WN), Long Weld Neck Flange (LWN), Ring Type Joint (RTJ), Threaded Flange, Customized Flange with Raised Face (RF), Flat Face (FF).

Material & Grades

Alloy Standard Grades
SS Flanges ASTM A182 Grade F304/L and F316/L F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L
Inconel Flanges ASTM B564 / B408/ B425 / A182 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811),825 (N08825), F904L (N08904).
Duplex / Super Duplex Flanges ASTM A182 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61, S32550).
Nickel Alloy Flanges ASTM B564 / B182 200 (N02200), 201 (N02201), Alloy 20 (N08020).
Monel Flanges ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. Monel 400, Monel K500
Hastelloy Flanges ASTM B564 / B572 C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675).
Titamium Flanges ASTM B381 F2, F5 (Ti6AI4V), F7.
SMO 254 Flanges - ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
